BECO 2.0 Image Gallery

Created on: Monday 26 June 2006

Click any image for a larger view.
thumbs/engine 004.jpg

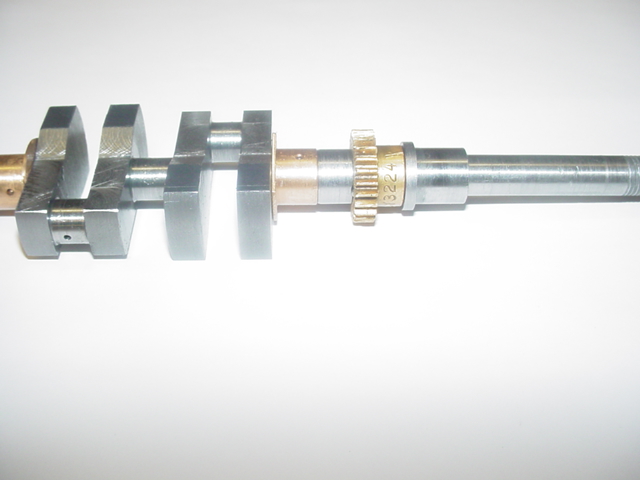

Crankshaft showing main bearings and timing gear.
You can also see the oil hole in the crank pin.
thumbs/engine 005.jpg

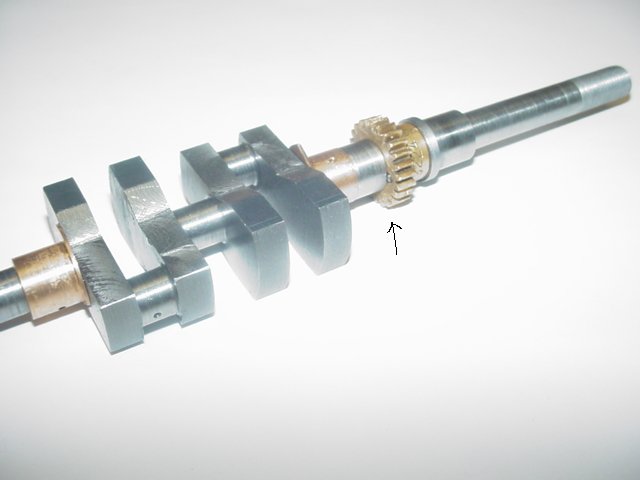

You can see the indexing pin in the timing gear.
To the right of the gear is the prop. stop bushing.
thumbs/engine 006.jpg

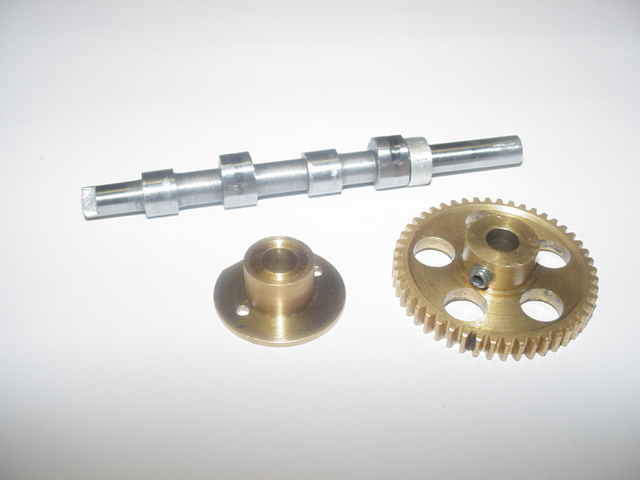

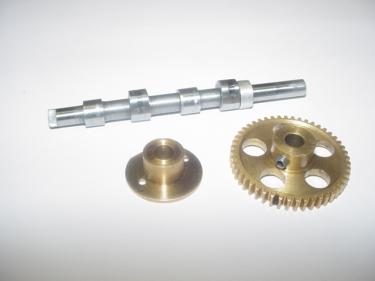

The cam shaft, bearing and gear.
thumbs/engine 007.jpg

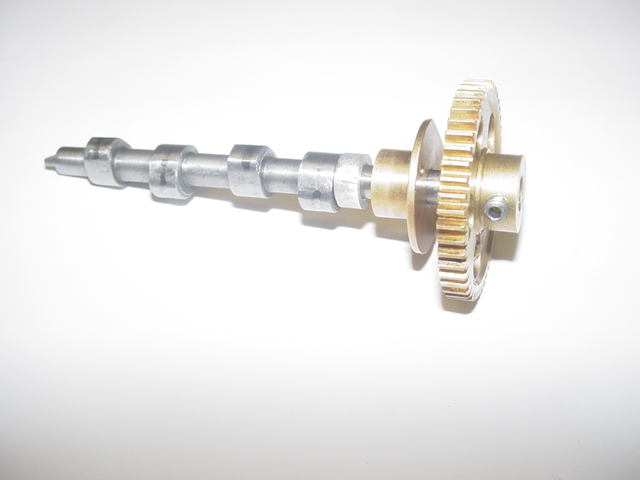

The cam bearing and gear assembled.
thumbs/engine 008.jpg

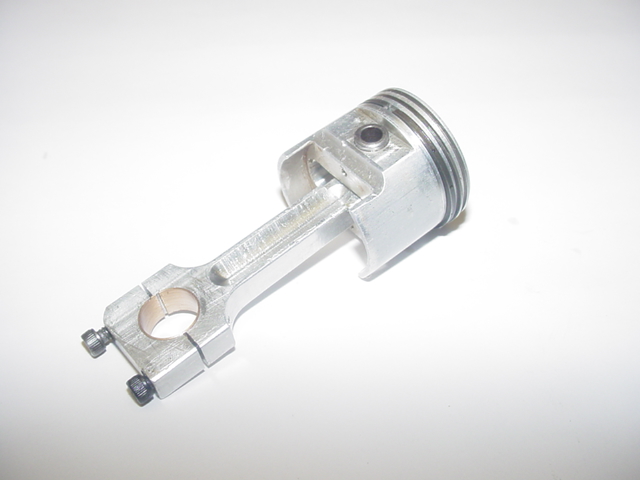

The piston and rod. You can see the rod bearings,
rings, and oil holes in the bottom side of the piston.
thumbs/engine 011b.jpg

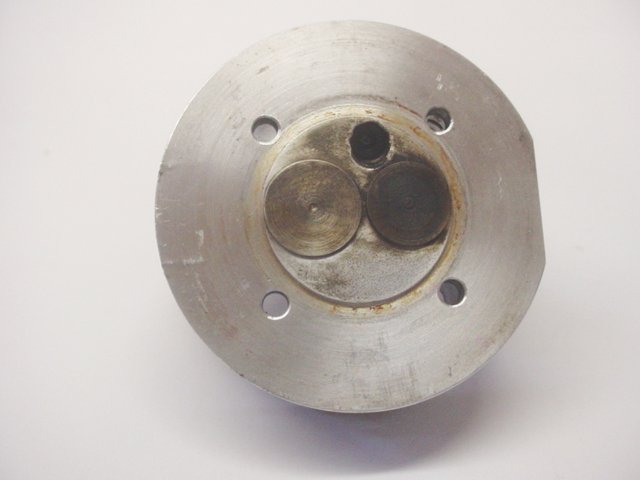

Cylinder head showing the valves and glow plug hole.
The larger intake valve runs cooler and is not burned.
thumbs/engine 013.jpg

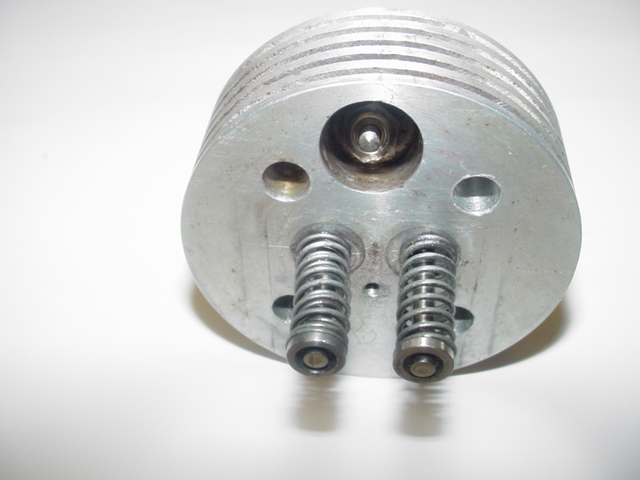

Cylinder head, top side. Showing valve springs and glow plug.
thumbs/engine 014.jpg

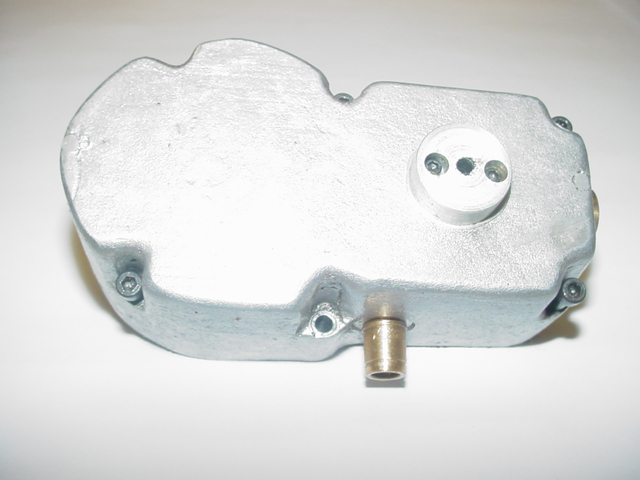

Rear cover with distributor mount and crankcase vent
thumbs/engine 018b.jpg

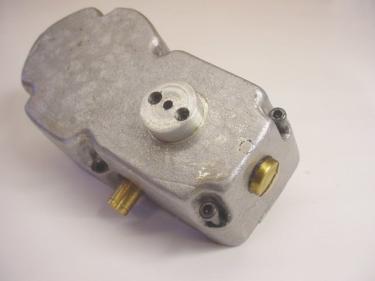

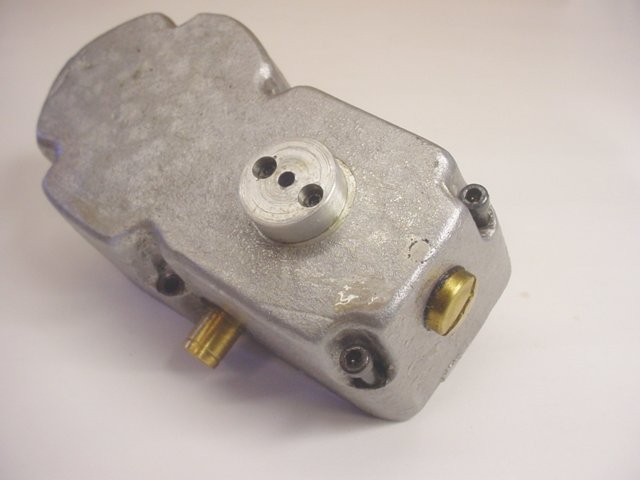

Rear cover showing crankcase drain plug
thumbs/engine 019.jpg

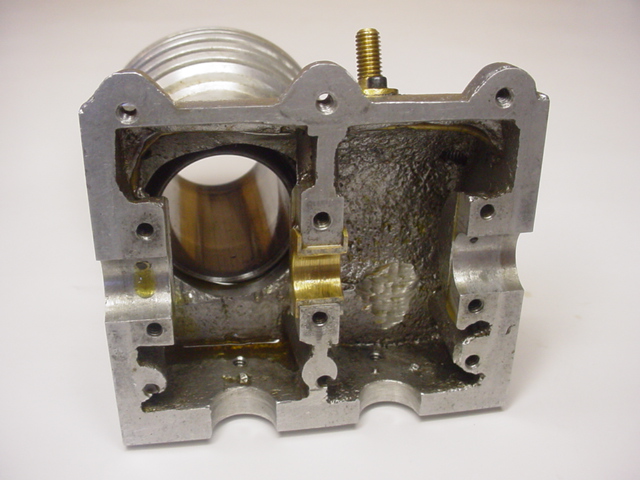

Left half of crankcase.
thumbs/engine 020.jpg

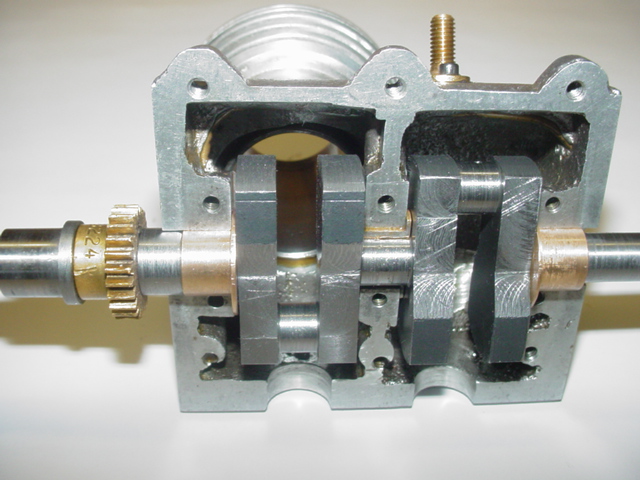

Left half of crankcase with crankshaft installed.
thumbs/engine 021.jpg

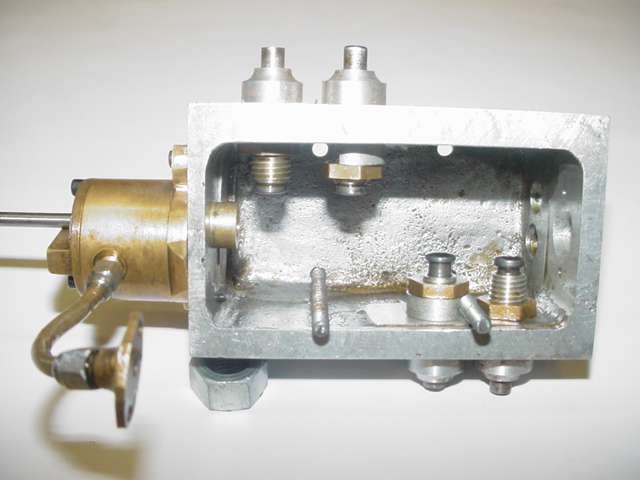

Oil pan with oil pump installed.
thumbs/engine 023b.jpg

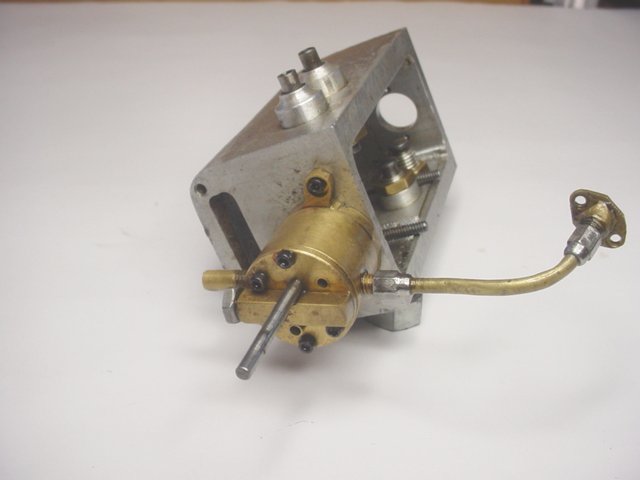

Another view of oil pan and pump.
thumbs/engine 027b.jpg

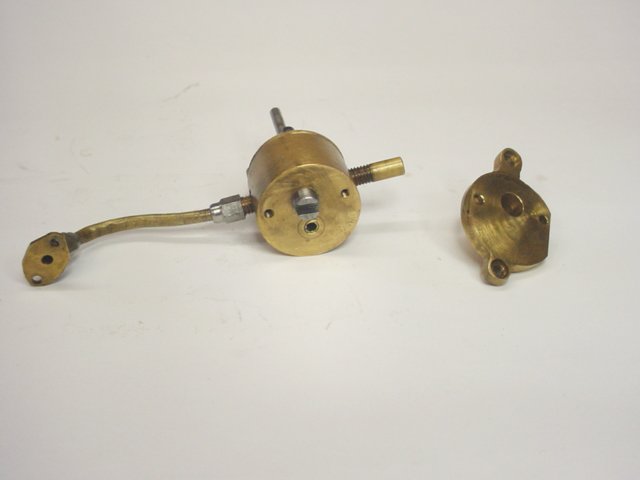

Oil Pump and mount.
thumbs/engine 028.jpg

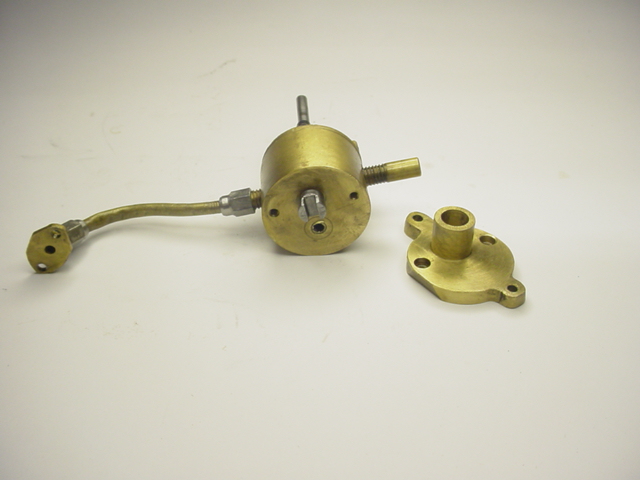

Oil pump and mount showing the cam bearing.
thumbs/engine 029b.jpg

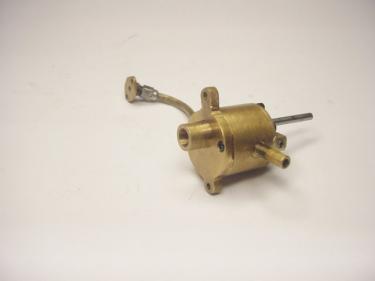

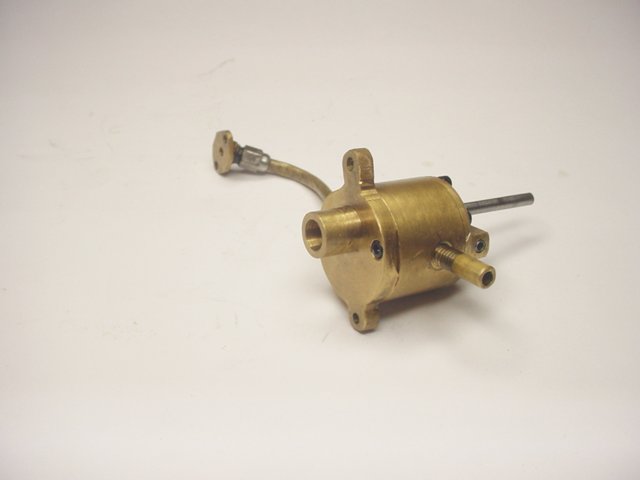

Oil pump and mount assembled.
thumbs/engine 030.jpg

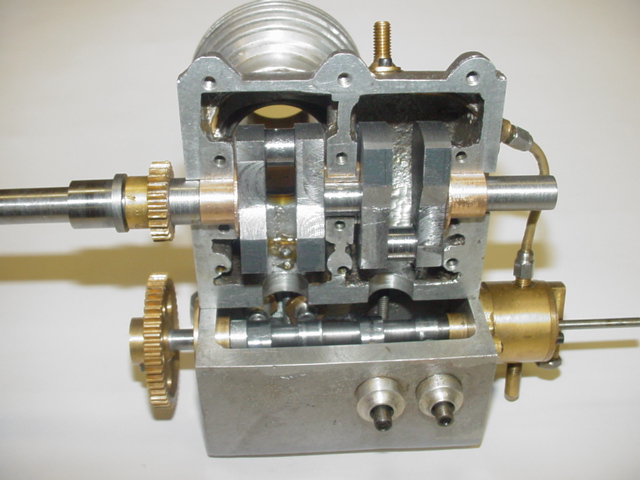

Left half of crankcase, oil pump, cam and oil pan assembled.
.
.
thumbs/engine 031.jpg

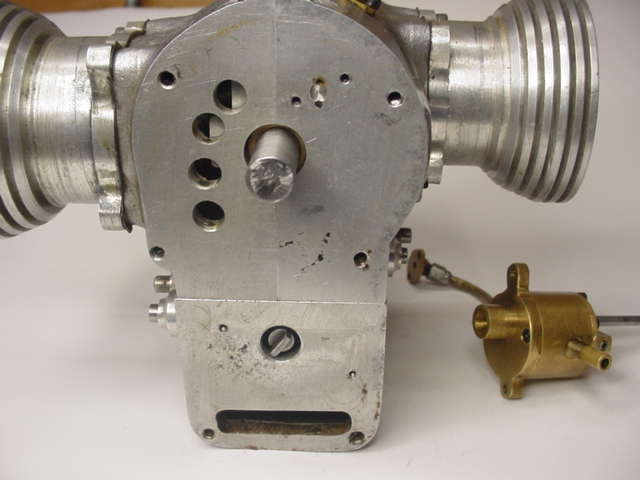

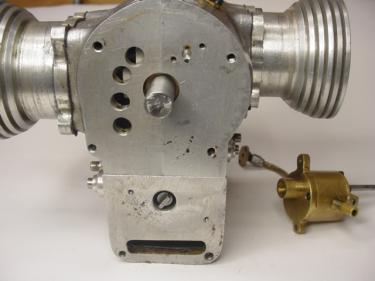

Rear of engine showing the oil pump mounting area.
You can also see the end of the camshaft.
The holes to the left of the crank are pressure vents.
thumbs/engine 032.jpg

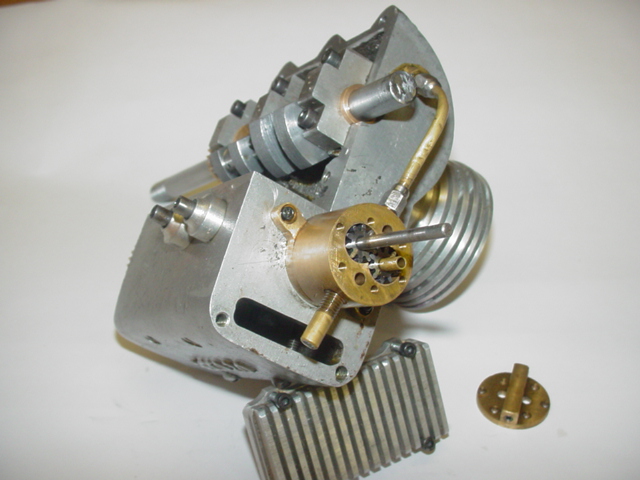

View of oil pump with pump cover removed.
thumbs/engine 033.jpg

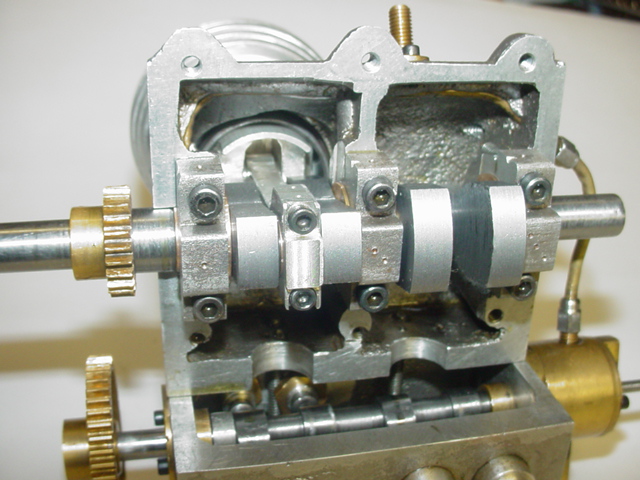

Left piston and main bearing caps installed.
thumbs/engine 037.jpg

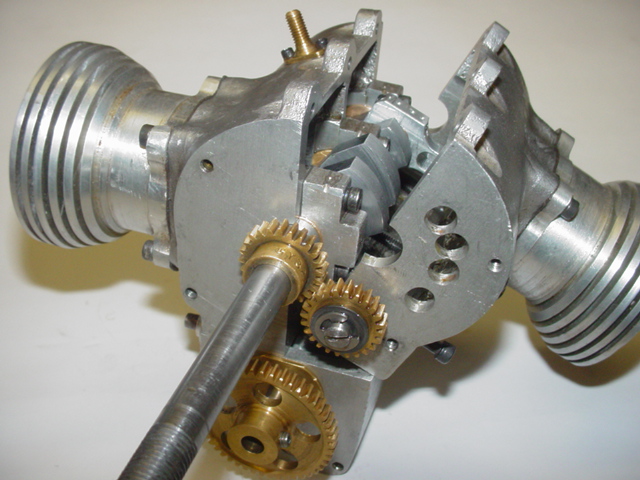

Right crankcase side coming together.
thumbs/engine 048b.jpg

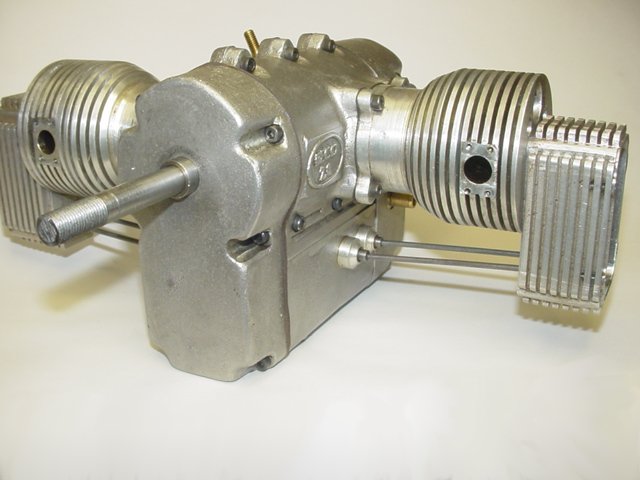

The engine completely assembled.
